Buckle

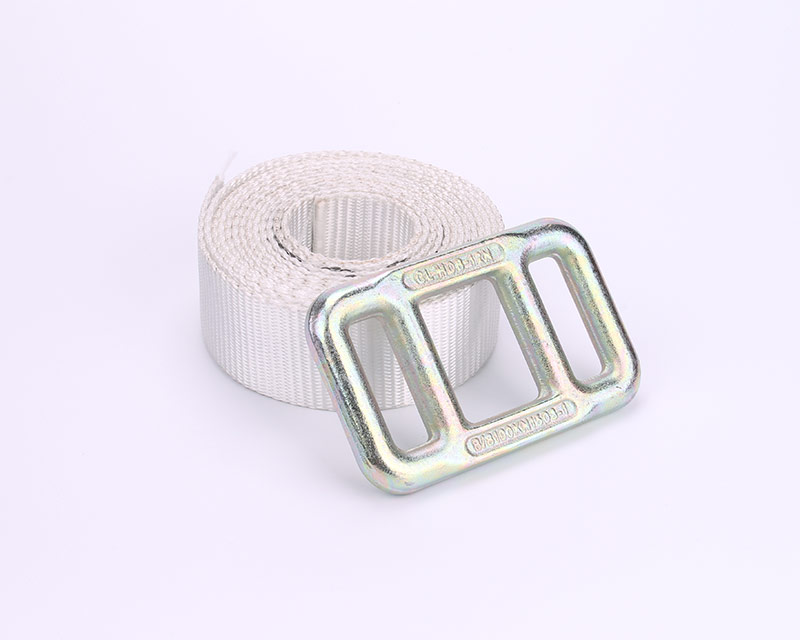

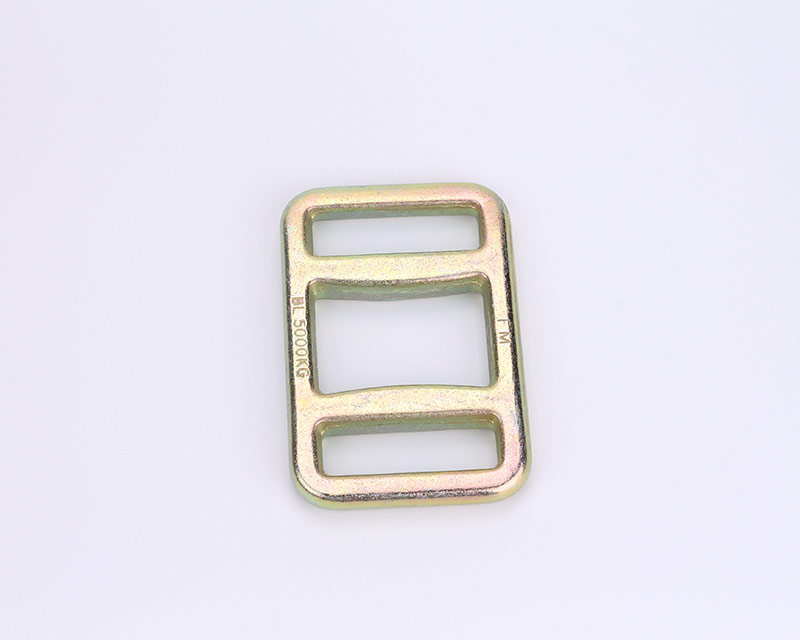

Mesh buckle: as a kind of high-strength buckle used for weaving packaging belt, it is able to pull 3-8t things and is thus widely used in the industries such as container, large machinery, glass, piping, oil drums, steels, timbers, paper making and chemicals, It is divide into casting, forging and welding types.
| TYPE | SIZE | TAPE WIDTH | TENSION | PACKING | G.W. | SURFACE |
|---|---|---|---|---|---|---|
| CL-S30 | 34mm | 30mm | 5000KG | 100pcs/box | 16.2KG | galvanize |
| CL-S40 | 48mm | 40mm | 8000KG | 50pcs/box | 19.2KG | galvanize |
| CL-S50 | 52mm | 50mm | 9000KG | 50pcs/box | 20.2KG | galvanize |
| CL-Z30 | 34mm | 30mm | 5000KG | 100pcs/box | 22KG | galvanize |
| CL-Z40 | 40mm | 40mm | 7000KG | 50pcs/box | 17.5KG | galvanize |
| CL-Z50 | 50mm | 50mm | 9000KG | 50pcs/box | 22.5KG | galvanize |
| CL-Y30 | 33mm | 30mm | 5000KG | 100pcs/box | 22KG | galvanize |
| CL-Y40 | 42mm | 40mm | 7000KG | 50pcs/box | 17.5KG | galvanize |
| CL-Y50 | 52mm | 50mm | 9000KG | 50pcs/box | 22.5KG | galvanize |
