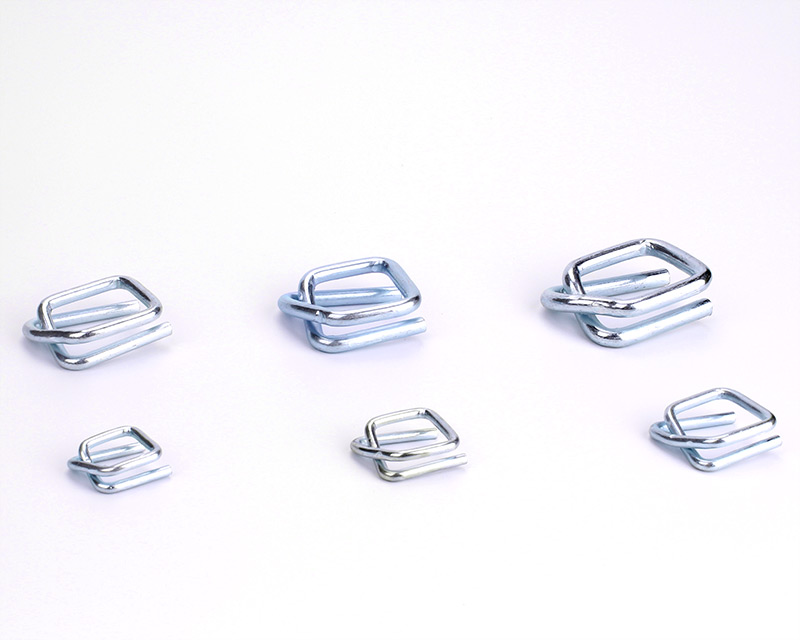

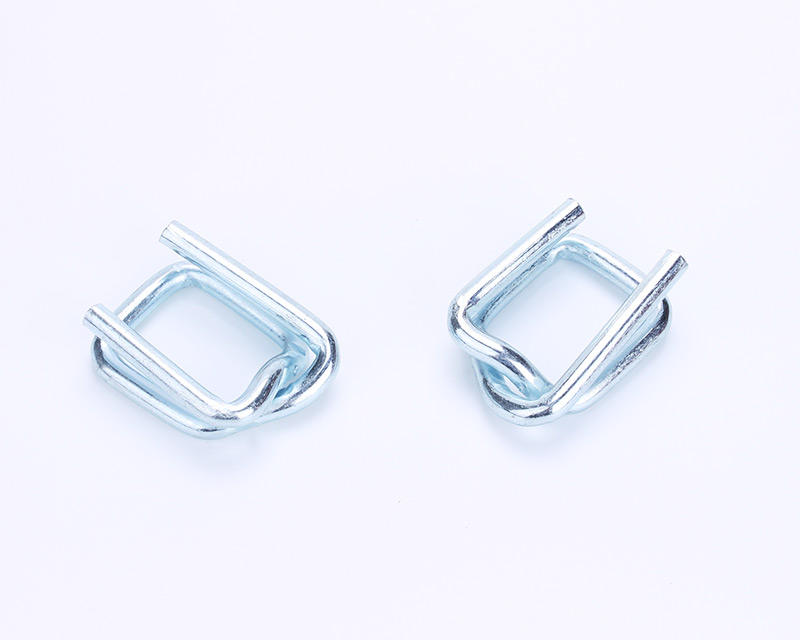

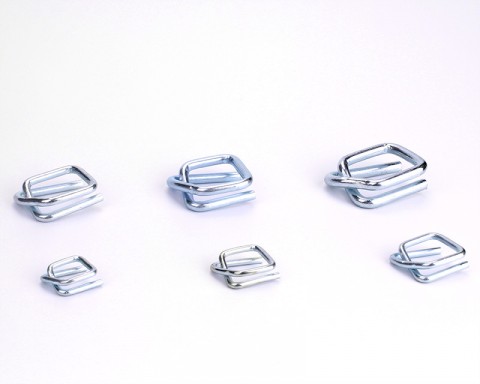

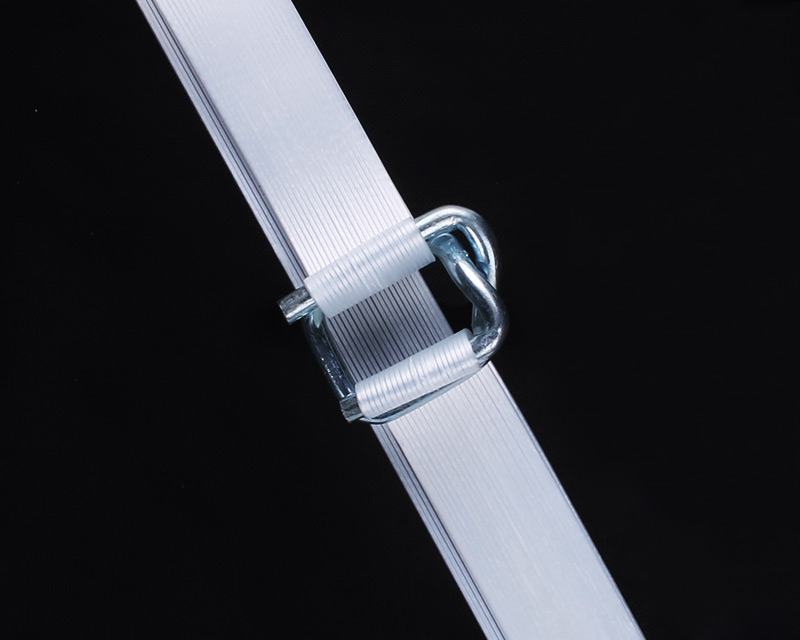

Composite Strapping Buckles
The polyester yams are additionally sheathed with a plastic coating and is therefore optimally protected against sharp edges and weathering.
| TYPE | DIAMETER | TAPE WIDTH | TENSION | PACKING | G.W. | SURFACE | |
|---|---|---|---|---|---|---|---|
| CL1333G | 3.3mm | 13mm | 1/2" | 480KG | 1000pcs/box | 9.6kg/box | G-galvanized |
| CL1635G | 3.5mm | 16mm | 5/8" | 680KG | 1000pcs/box | 12.8kg/box | G-galvanized |
| CL1940G | 4.0mm | 19mm | 3/4" | 950KG | 1000pcs/box | 20kg/box | G-galvanized |
| CL2550G | 5.0mm | 25mm | 1" | 1250KG | 500pcs/box | 19kg/box | G-galvanized |
| CL2560G | 6.0mm | 25mm | 1" | 1600KG | 500pcs/box | 28kg/box | G-galvanized |
| CL3270G | 7.0mm | 32mm | 1-1/4" | 2500KG | 250pcs/box | 22kg/box | G-galvanized |
| CL3870G | 7.0mm | 38mm | 1-1/2" | 2700KG | 250pcs/box | 23.8kg/box | G-galvanized |
| CL5080G | 8.0mm | 50mm | 2" | 4000KG | 150pcs/box | 23kg/box | G-galvanized |
