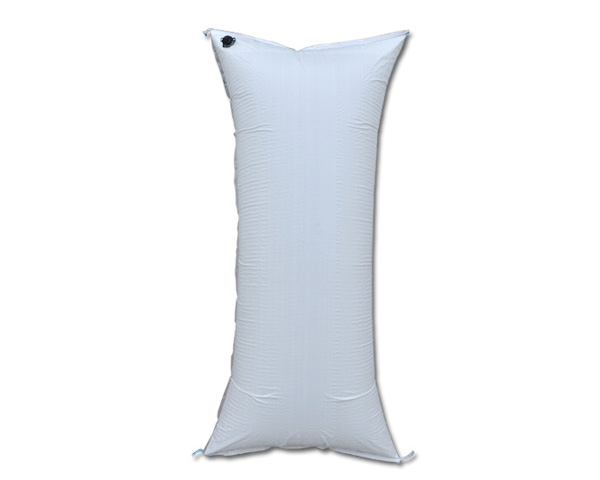

Dunnage air bag

Dunnage air bag

The inner bag is made of 5 layers coextrusion PA and PE film, by making full use of the adhesive properties of PE film and the barrier property of PA film to improve the gas tightness greatly.

INQUIRY

Five advantages to choose us:

  • Low use-cost, high compressive strength and shock strength, dunnage air bags are superior to orther inflatable materials.
  • Operate easily, fast to inflate, save much time when packing in container.
  • Various specifications and materials suit many using occasions.
  • Protect goods in transport, avoid mutual collide, dunnage bag can buffer and collapse-proof goods efficiency.
  • Dunnage bag is recycle and environmental protect.

 Dunnage-Air-Bags

Big-Foot-Vinyl-dunnage-airbag-bracing-min

Characteristics and superiority

The diameter of traditional air filler valve is only 10mm,which lead to the bottleneck when inflate air fast. Now adopte the cyclone valve with the diameter of 33mm, the inflating speed is the original 3.5 times as much, which can low labor cost, enhance working efficiency in transportation.

The inner bag is made of 5 layers coextrusion PA and PE film, by making full use of the adhesive properties of PE film and the barrier property of PA film to improve the gas tightness greatly.



To satisfy different requirements, we provide two materials of outer bag to choose , one is kraft paper, the other is PPwoven.



TypeSpecificationUse gapMax Filling WidthMax Filling Height
CLDB051050*1000-2525100
CLDB061060*1000-3030100
CLDB051550*1500-2525150
CLDB061260*1200-3030120
CLDB061560*1500-3030150
CLDB081280*1200-4040120
CLDB081680*1600-4040160
CLDB081880*1800-4040180
CLDB091290*1200-4545120
CLDB091890*1800-4545180
CLDB1012100*1200-5050120
CLDB1016100*1600-5050160
CLDB1018100*1800-5050180
CLDB1020100*2000-5050200
CLDB1022 100*2200-5050220
CLDB1024100*2400-5050240
CLDB1212 120*1200-6060120
CLDB1218120*1800-6060180
CLDB1222120*2200-6060220
CLDB1224120*2400-6060240
